Maximizing Casting Quality and Yield Rate: How Iron Mold Coated Sand Technology Eliminates Common Foundry Defects

For modern foundries manufacturing high-value, critical components like grinding media balls, automotive brake drums, and heavy-duty crankshafts, structural integrity is non-negotiable. Traditional sand casting methods often struggle to meet these rising standards, frequently plagued by issues such as internal shrinkage, gas porosity, and sub-optimal surface finishes. These defects directly compromise the final product’s mechanical properties, leading to costly scrap rates and diminished profitability.

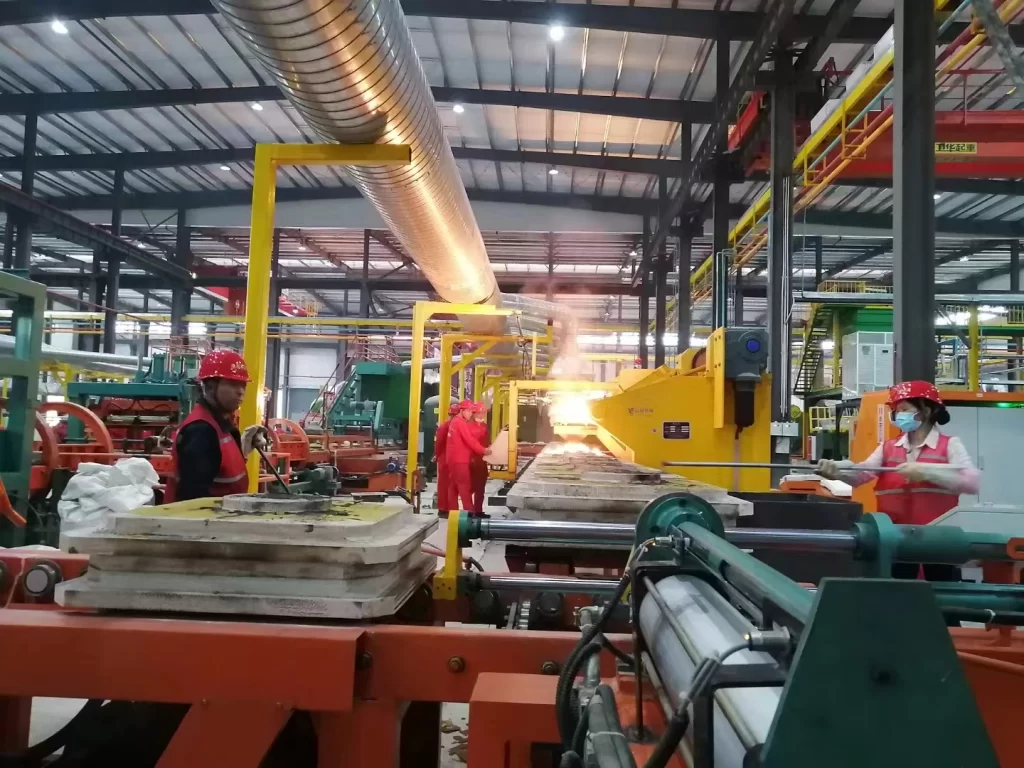

To overcome these roadblocks, leading global manufacturers are turning to the iron mold coated sand casting production line. By blending the rigid structural support of a metal mold with the precise venting capabilities of resin-coated sand, this specialized process delivers exceptional dimensional accuracy in sand casting while pushing production yield rates to their absolute peak.

The Core Defect Killers: Preventing Porosity and Shrinkage

The primary metric of success for any heavy-duty automation equipment in a foundry is its ability to consistently deliver defect-free components. Conventional sand molds suffer from flexibility and slow heat dissipation, which can cause prolonged solidification times, leading to micro-shrinkage and gas entrapment.

Eliminating Gas Porosity

One of the most persistent issues in high-alloy or thick-walled cast parts is nitrogen and hydrogen entrapment. Standard sand casting often traps gas as the molten metal reacts with the mold binders. The iron mold coated sand process mitigates this by applying a strictly controlled, uniform layer of resin-coated sand over a rigid iron base. This sand layer provides an efficient pathway for gas evacuation, effectively preventing nitrogen porosity and ensuring a dense, completely solid internal structure.

Eradicating Internal Shrinkage Cavities

Shrinkage occurs when sections of a casting cool unevenly, leaving internal voids in the slower-cooling core. An automated iron mold coated sand molding line solves this through accelerated, directional solidification. Because the underlying iron mold acts as a highly efficient heat sink, it draws warmth away from the liquid metal rapidly and uniformly, ensuring the casting solidifies from the inside out without developing internal cavities.

Decoding the Process: Wall Thickness, Sand Layers, and Cooling Rates

The technical breakthrough of this process lies in its ability to finely manipulate thermal dynamics. The “soul” of the technology relies heavily on the iron mold rapid cooling process, where the metallic backing and the sand lining work in perfect harmony.

+-------------------------------------------------------------+
|                     Molten Metal Core                       |
+-------------------------------------------------------------+
                            |  (Heat Transfer)
                            v
+-------------------------------------------------------------+
|    Resin-Coated Sand Layer (Thickness: 3mm - 8mm)           | -> Controls Initial Thermal Shock
+-------------------------------------------------------------+
                            |  (Rapid Dissipation)
                            v
+-------------------------------------------------------------+
|    Heavy Iron Mold / Metallic Backing (High Rigidity)       | -> Drives Directional Solidification
+-------------------------------------------------------------+

To optimize the microstructure of high-performance parts, the machinery must achieve an exact balance between two critical parameters:

• Iron Mold Wall Thickness: Provides the necessary structural rigidity to prevent mold wall movement under high ferrostatic pressure, maintaining tight dimensional tolerances.
• Coated Sand Layer Thickness: Typically calibrated between $3\text{ mm}$ and $8\text{ mm}$, this thin sand liner acts as a controlled thermal barrier. It prevents premature chilling of the molten metal surface during the first few seconds of pouring while allowing the underlying iron mold to rapidly absorb heat immediately afterward.

By precisely governing these variables via an automated system, the cooling velocity is perfectly optimized. This rapid cooling refines the grain structure of the metal, dramatically increasing the hardness, wear resistance, and impact toughness of components like grinding balls and crankshafts. Furthermore, the smooth, uniform sand layer ensures a superior surface finish, reducing the need for extensive post-pour grinding or machining.

Data-Driven Performance: Real-World Yield and Grain Analysis

Investing in a high-caliber automatic casting production line isn’t just about adopting a cleaner process—it is a direct strategy to improve your bottom line through quantifiable performance metrics.

Achieving a 95%+ Pass Rate

While traditional green sand lines often see casting rejection rates hovering around 8% to 12% due to dimensional drifting and subsurface defects, a precision-engineered iron mold coated sand system reliably elevates the finished product yield rate to over 95%. This drastic reduction in scrap metal immediately translates to lower energy consumption, minimized raw material waste, and maximized hourly output.

Metallurgical Validation

When subjected to rigorous metallographic examination, castings produced via this rapid-cooling metal mold method exhibit distinct structural advantages over traditional castings:

The fine grain matrix achieved through this accelerated solidification guarantees that components subject to high friction and cyclical stress—such as mining grinding media or automotive brake components—experience a significantly longer operational lifespan in the field.

Choosing a Turnkey Engineering Partner

Upgrading your foundry infrastructure requires more than off-the-shelf machinery; it demands a deep understanding of thermal engineering and customized plant layouts. A truly optimized production system integrates automated shot blasting, precise waste sand recycling systems, and real-time PLC monitoring to ensure that every individual pour matches your exact metallurgical specifications.

By partnering with an experienced manufacturer capable of delivering custom mold designs and tailored cooling configurations, your foundry can confidently guarantee the zero-defect, high-precision results that global Tier-1 industrial buyers demand.
